Advanced Asset

About the plugin

Github Repository

Author plugin written for Riftborn. It implements the custom Primary Asset for more convenient and efficient management of assets in the game.

Overview

The plugin adds a UAdvancedDataAsset that inherits from the UPrimaryDataAsset.

classDiagram
    UPrimaryDataAsset <|-- UAdvancedDataAsset
    UDataAsset <|-- UPrimaryDataAsset

Note

UPrimaryDataAsset is DataAsset that implements GetPrimaryAssetId and has asset bundle support, which allows it to be manually loaded/unloaded from the AssetManager.

UAdvancedDataAsset Uses GetPrimaryAssetId() and generates the ID as follows:

FPrimaryAssetId(FPrimaryAssetType(AssetType), AssetId)

Asset Type

For the ID to be generated correctly, you must specify AssetType in the C++ constructor as follows:

MyAdvancedDataAsset.h
class YOUR_API UMyAdvancedDataAsset : public UAdvancedDataAsset {
    GENERATED_BODY()
public:
  UMyAdvancedDataAsset();
}
MyAdvancedDataAsset.cpp
UMyAdvancedDataAsset::UMyAdvancedDataAsset()
{
  AssetType = TEXT("MyAsset");
}

You can now create an instance of the date asset and specify the Asset ID

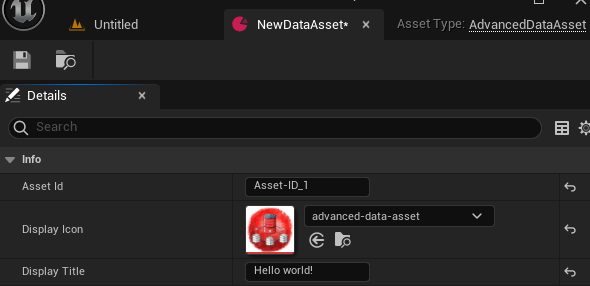

asset-id

Asset Manager

To load assets via FPrimaryAssetId(AssetType, AssetId) you need to register an asset in Asset Manager.

Warning

For each subclass of data-asset you need to specify a new asset type and register it in Asset Manager!

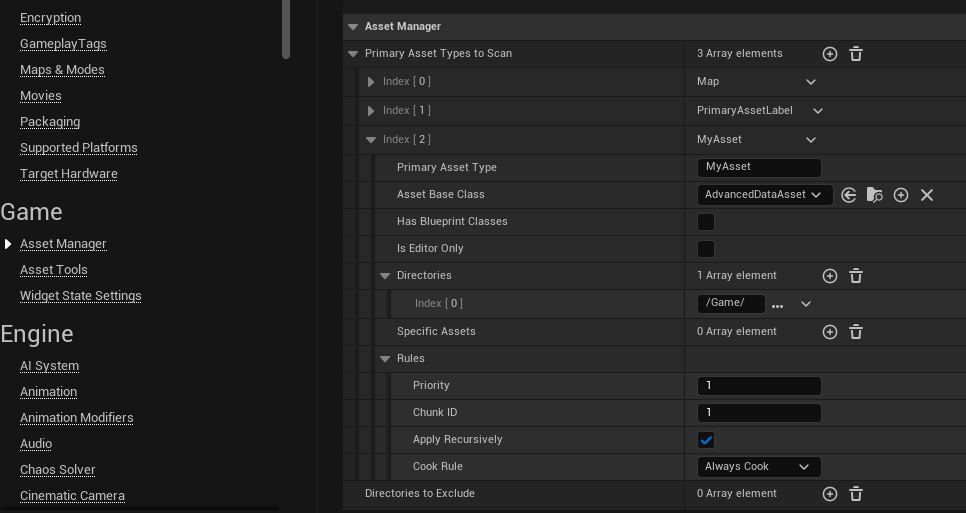

asset-manager

Note

In the "Primary Asset Type", you must specify the asset type you specified in the constructor.

In "Asset Base Class" you must specify the created C++ class

Now you can load assets with just a Type and ID

MyAssetManager.h
class YOUR_API UMyAssetManager : public UAssetManager
{
    GENERATED_BODY()

public:

    template <class T>
    T* LoadAsset(FName ID)
    {
        if (const UAdvancedDataAsset* Default = Cast<UAdvancedDataAsset>(T::StaticClass()->GetDefaultObject()))
        {
            const FPrimaryAssetId PrimaryAssetId = FPrimaryAssetId(Default->GetType(), ID);
            const FSoftObjectPath path = GetPrimaryAssetPath(PrimaryAssetId);
            if (T* LoadedItem = Cast<T>(path.TryLoad()))
            {
                return LoadedItem;
            }
        }
        return nullptr;
    }
};

Thumbnail renderer

You can select any icon from the project to display asset. You can also add a short name for the icon.

asset-thumbnail
