Config Forge

About the plugin

Github Repository

Author plugin written for Riftborn.

Plugin that offers a comprehensive system for managing game configurations. It breaks down game configurations into files, categories, and properties that can be easily accessed for both default game configurations, which are asset-based, and saved game configurations, which are stored on disk using a GameInstance system. The plugin supports synchronous or asynchronous loading or saving, offers flexible paths for saving, exposes functions to Blueprints, and offers functionality to be modified at runtime.

See Example

Setup

For the plugin to work, you need to create a few assets and configure them:

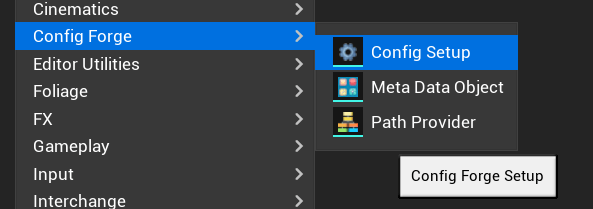

1. Create Config Setup Asset

Create a Config Setup. This is a basic asset that allows you to configure files, categories, and properties.

assets

2. Configure Asset

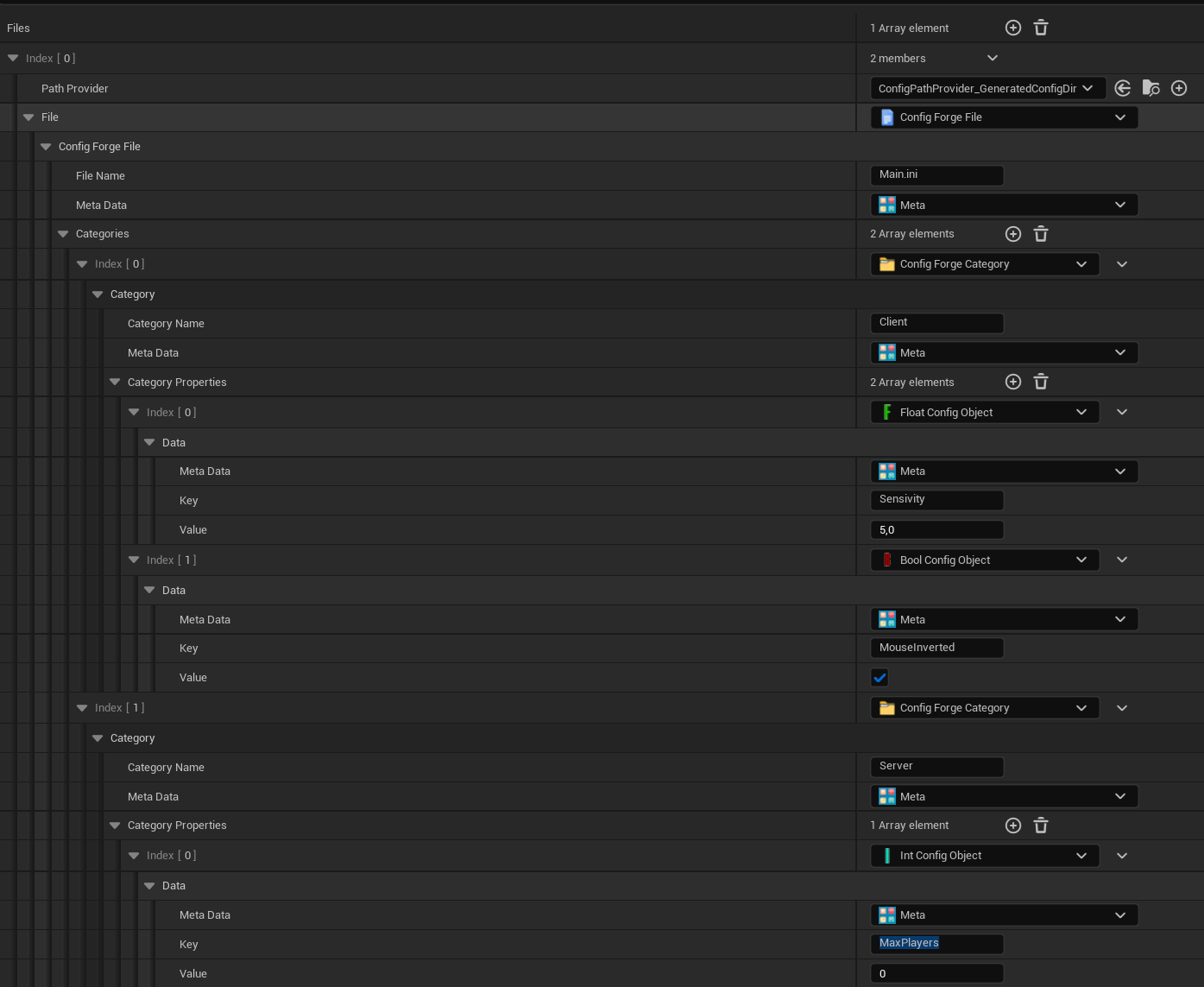

Configure your asset as you see want.

structure

Files

You can use the default files or create your own class for processing files.

You can choose where the file will be stored (Config Provider) and its name with the .ini extension.

Warning

Config Provider and Name are used to generate the ID, so do not create identical files, as this will cause the system to crash.

Categories

Each file can have a lot of categories. Each category in the .ini file will be used via [CategoryName]

Warning

Do not use identical names for categories in the same file, otherwise the system will crash.

Fields

Each category can have fields. The plugin provides the entire set of .ini fields:

uint8, int32, int64, float, double, FString.

To create your own field type (e.g. array or FVector), inherit from UConfigValueObject in C++ and implement all methods.

Warning

Do not name fields in the same category identically. This may cause the system to crash.

Meta

Files, categories, and properties can have Meta Data. This is any object for custom settings.

Tip

You can create UConfigForgeMetaDataObject for a file that will contain a ENUM. Depending on the ENUM, you will decide whether you need to upload this file to the server, client, etc.

3. Configure Developer Settings

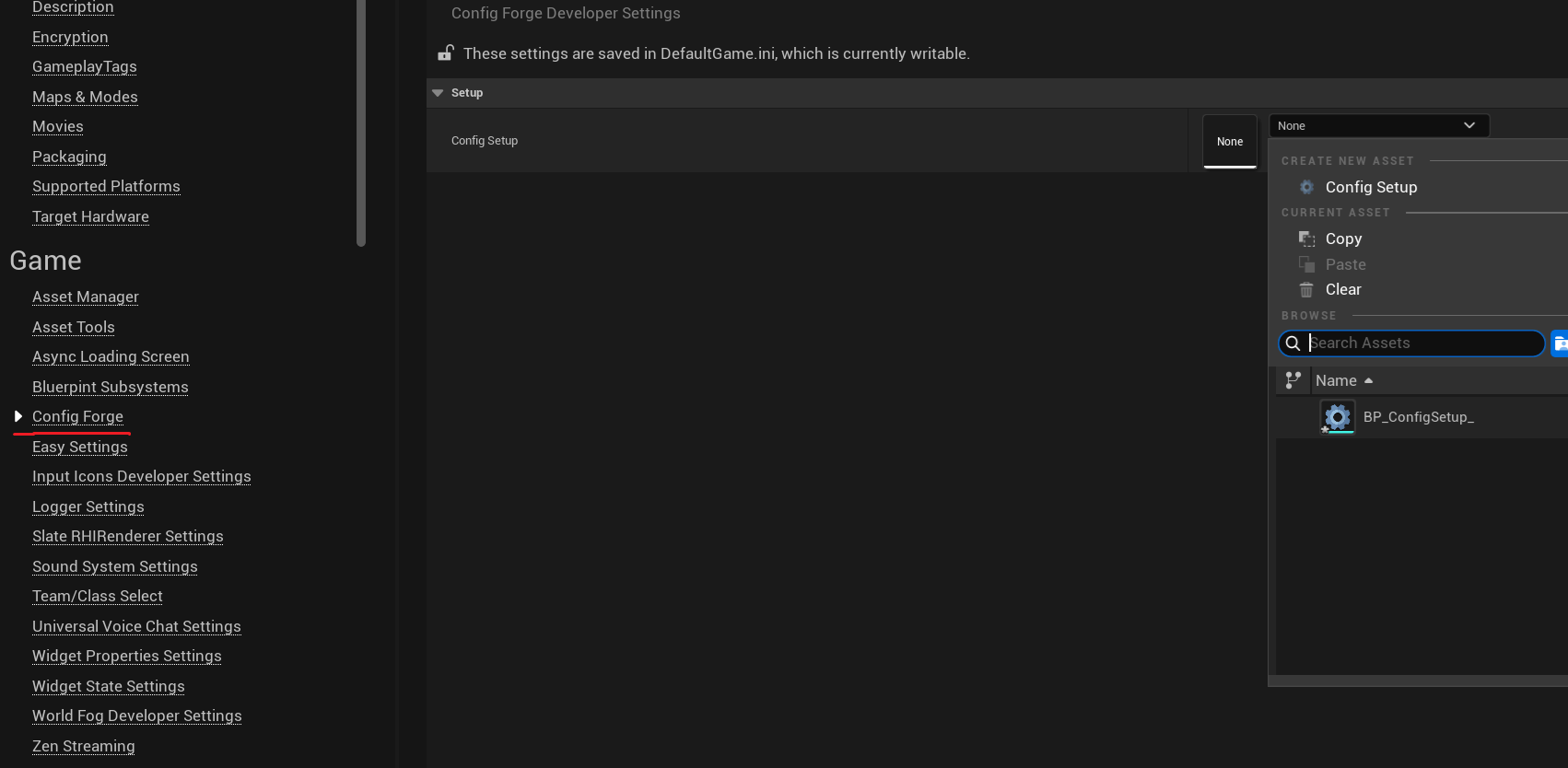

Select your assend in Project Settings / Config Forge

developer

UConfigPathProvider

class CONFIGFORGE_API UConfigPathProvider : public UObject

Path Provider determines which directory the file will be located in.

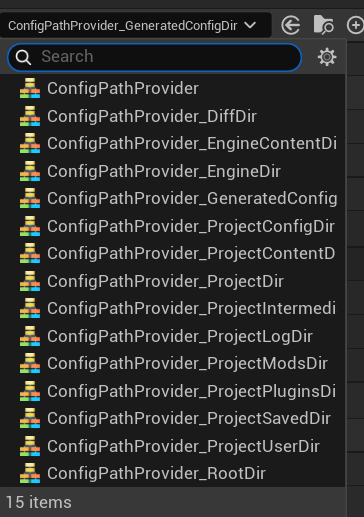

path-providers

You can use the ready-made directories provided by the plugin, or create your own Path Provider.

Just implement

FString GetPath() const;

UConfigForgeDeveloperSettings

class CONFIGFORGE_API UConfigForgeDeveloperSettings : public UDeveloperSettings

TSoftObjectPtr<UConfigForgeSetup> ConfigSetup;

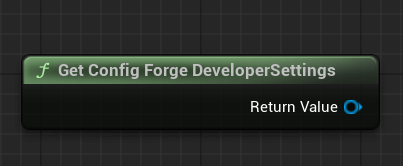

You can obtain this object in blueprints via

static const UConfigForgeDeveloperSettings* Get();
get-developer-settings

In C++ I recommend using

const UConfigForgeDeveloperSettings* obj = GetDefault<UConfigForgeDeveloperSettings>();

Tip

You can split the logic in C++ using #if WITH_EDITOR. This way, you will use one path in the EDITOR and another in the PACKAGED BUILD.

UConfigForgeFileRuntime

class CONFIGFORGE_API UConfigForgeFileRuntime : public UObject

In Runtime, the plugin uses this class to store information about the file on the disk.

You can always use all these getters to obtain information about the file: its name, full path, Path Provider object, the asset you configured, and a unique ID.

FString GetFileName() const;
FString GetFullPath() const;
UConfigPathProvider* GetPathProvider() const;
ConfigForgeFile* GetFileAsset() const;

Info

This ID is used to obtain the runtime file object and can be easily obtained at runtime.

FGuid GetFileID() const;

Tip

Always check whether the data is valid with the help of cpp bool IsValidData() const;

UConfigForgeCategoryRuntime

class CONFIGFORGE_API UConfigForgeCategoryRuntime : public UObject

This object contains information about the category: Name, Asset, as well as all of its fields.

FName GetCategoryName() const;
UConfigForgeCategory* GetCategoryAsset() const;

With the file loaded into RAM, you can get all of its categories.

You can also always get the file in which this category is located:

UConfigForgeFileRuntime* GetFile() const

UConfigValueObjectRuntime

class CONFIGFORGE_API UConfigValueObjectRuntime : public UObject

This object stores any information needed to write to or read from the disk. It is actually a field in an .ini file.

You can obtain the field name and the asset you configured:

FString GetKey() const;
UConfigValueObject* GetAsset() const;

You can find out which category this field object belongs to:

UConfigForgeCategoryRuntime* GetCategory() const

The following functions are used to set or retrieve FDynamicValue:

FDynamicValue GetDynamicValue() const
void SetDynamicValue(const FDynamicValue& InValue);

FDynamicValue

struct CONFIGFORGE_API FDynamicValue

A universal structure for storing any data.

Unfortunately, blueprints are not that flexible, and most of the functionality of this structure is revealed in C++:

FDynamicValue val;
val.Set<int>(17);

int temp;
val.Get<int>(temp); // temp will be 17

In C++, a structure can be created directly with a value.

FDynamicValue val = FDynamicValue::Make(31.23f);

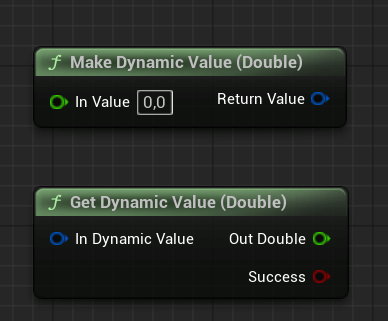

The Blueprints have functions for creating and reading FDynamicValue, but only for the basic data types used in .ini files.

dynamic-bp

UConfigForgeSubsystem

class CONFIGFORGE_API UConfigForgeSubsystem : public UGameInstanceSubsystem

The main subsystem for file manipulation

FConfigForgeFileData

struct CONFIGFORGE_API FConfigForgeFileData {
    TSubclassOf<UConfigPathProvider> PathProvider;
    TObjectPtr<UConfigForgeFile> File;
}

A structure that contains the PathProvider class and the file name with the extension.

FConfigForgeFileData GUID

You can generate a unique ID for the file:

FGuid UConfigForgeLibrary::GetForgeFileID(const FConfigForgeFileData& InData)

Asset Functions

Get Settings

const UConfigForgeDeveloperSettings* GetSettings() const;

Gets the developer settings for the ConfigForge system.

Get SetupAsset

TSoftObjectPtr<UConfigForgeSetup> GetSetupAsset() const;

Retrieves the setup asset reference from developer settings.

Get File

bool GetFile(const FString& InFileName, FConfigForgeFileData& OutFileData) const;

Retrieves a specific asset configuration file by name.

Get Files

void GetFiles(TArray<FConfigForgeFileData>& OutFiles) const;

Retrieves all valid configuration files from the setup asset.

Get File Names

void GetFileNames(TArray<FString>& OutNames) const;

Retrieves the names of all configuration files in the [setup asset](#1-create-config-setup-asset.

Get File Categories By Name

void GetFileCategoriesByName(const FString& InFileName, TArray<FName>& OutCategories);

Retrieves all category names from a file specified by name.

Get File Categories

void GetFileCategories(const FConfigForgeFileData& InFileData, TArray<FName>& OutCategories);

Retrieves all category names from a file data structure.

Get Category Properties

void GetCategoryProperties(const FString& InFileName, const FName& InCategoryName, TArray<UConfigValueObject*>& OutProperties);

Retrieves all value objects from a specific category within a file.

Disk Read/Write Functions

Important

The subsystem can only perform one file operation at a time.

Therefore, it is not possible to use two asynchronous operations simultaneously. To check whether the subsystem is currently busy working on files, use:

bool IsOperatingFiles() const;

Single File

Load Single File

bool LoadSingleFile(const FConfigForgeFileData& InFileData, UConfigForgeFileRuntime*& OutFile);

Synchronously loads a single config file from disk.

Load Single File (Async)

void LoadSingleFileAsync(const FConfigForgeFileData& InFileData, FLoadForgeFileDelegate Callback);

Asynchronously loads a single config file from disk.

Save Single File

bool SaveSingleFile(const FGuid& InFileUniqueID);

Synchronously saves a single loaded config file to disk.

Save Single File

void SaveSingleFileAsync(const FGuid& InFileUniqueID, FSaveForgeFileDelegate Callback);

Asynchronously saves a single loaded config file to disk.

All files

Load ALL Files

bool LoadAllFiles(TArray<UConfigForgeFileRuntime*>& OutFiles);

Loads all configuration files synchronously.

Load ALL File (Async)

void LoadAllFilesAsync(FLoadAllForgeFileDelegate Callback);

Loads all configuration files asynchronously.

Save ALL Files

bool SaveAllFiles();

Saves all currently loaded runtime configuration filess synchronously.

Save ALL Files (Async)

void SaveAllFilesAsync(FSaveAllForgeFileDelegate Callback);

Saves all currently loaded runtime configuration files asynchronously.

Selected Files

Load Selected Files

bool LoadSelectedFiles(const TArray<FConfigForgeFileData>& InFiles, TArray<UConfigForgeFileRuntime*>& OutFiles);

Synchronously loads a selected subset of config files into runtime files.

Load Selected Files (Async)

void LoadSelectedFilesAsync(const TArray<FConfigForgeFileData>& InFiles, FLoadAllForgeFileDelegate Callback);

Asynchronously loads a selected subset of config files into runtime files.

Save Selected Files

bool SaveSelectedFiles(const TArray<FGuid>& InFiles);

Saves selected loaded runtime configuration files synchronously.

Save Selected Files (Async)

void SaveSelectedFilesAsync(const TArray<FGuid>& InFiles, FSaveSelectedForgeFileDelegate Callback);

Saves selected loaded runtime configuration files asynchronously.

Runtime Functions

Get Runtime File

bool GetRuntimeFile(const FGuid& InUniqueFileId, UConfigForgeFileRuntime*& OutRuntimeFile) const;

Retrieves a loaded runtime file instance by its unique ID.

Get All Runtime Files

void GetAllRuntimeFiles(TArray<UConfigForgeFileRuntime*>& OutRuntimeFiles) const;

Retrieves all runtime configuration files currently loaded in the subsystem.

Get Runtime Categories

bool GetRuntimeCategories(const UConfigForgeFileRuntime* InConfigFile, TArray<UConfigForgeCategoryRuntime*>& OutCategories) const;

Retrieves all categories from a specific runtime configuration file.

Get Runtime Categories (By File ID)

bool GetRuntimeCategories_ID(const FGuid& InFileId, TArray<UConfigForgeCategoryRuntime*>& OutCategories) const;

Retrieves all categories from a runtime configuration file identified by its ID.

Get Runtime Category

bool GetRuntimeCategory(const UConfigForgeFileRuntime* InConfigFile, const FName& InCategoryName, UConfigForgeCategoryRuntime*& OutCategory) const;

Retrieves a specific category by name from a runtime configuration file.

Get Runtime Category (By File ID)

bool GetRuntimeCategory_ID(const FGuid& InFileId, const FName& InCategoryName, UConfigForgeCategoryRuntime*& OutCategory) const;

Retrieves a specific category by name from a runtime configuration file identified by its ID.

Get Runtime Field (Full info return)

bool GetRuntimeField_Full(const FGuid& InFiledId, const FName& InCategoryName, const FString& InFieldName,
        UConfigForgeFileRuntime*& OutFile,
        UConfigForgeCategoryRuntime*& OutCategory,
        UConfigValueObjectRuntime*& OutField) const;

Retrieves a runtime field by providing its file ID, category name, and field name.

Get Runtime Field

bool GetRuntimeField(const UConfigForgeCategoryRuntime* InRuntimeCategory, const FString& InKey, UConfigValueObjectRuntime*& OutField) const;

Retrieves a specific field by key from a runtime category.

Get Runtime Field (By File Object)

bool GetRuntimeField_File(const UConfigForgeFileRuntime* InConfigFile, const FName& InCategoryName, const FString& InKey, UConfigValueObjectRuntime*& OutField) const;

Retrieves a specific field by key from a category within a runtime configuration file.

Get Runtime Field (By File ID)

bool GetRuntimeField_ID(const FGuid& InFileID, const FName& InCategoryName, const FString& InKey, UConfigValueObjectRuntime*& OutField) const;

Retrieves a specific field by key from a category within a runtime configuration file identified by its ID.

Get Runtime Fields

bool GetRuntimeFields(const UConfigForgeCategoryRuntime* InRuntimeCategory, TArray<UConfigValueObjectRuntime*>& OutFields) const;

Retrieves all fields from a runtime category.

Get Runtime Fields (By File Object)

bool GetRuntimeFields_File(const UConfigForgeFileRuntime* InConfigFile, const FName& InCategoryName, TArray<UConfigValueObjectRuntime*>& OutFields) const;

Retrieves all fields from a runtime category within a runtime configuration file.

Get Runtime Fields (By File ID)

bool GetRuntimeFields_ID(const FGuid& InFileID, const FName& InCategoryName, TArray<UConfigValueObjectRuntime*>& OutFields) const;

Retrieves all fields from a runtime category within aruntime configuration file identified by its ID.

Events

On All Files Loaded

FConfigForgeSubsystemDelegate OnAllFilesLoaded;

Called when UConfigForgeSubsystem::LoadAllFiles and ConfigForgeSubsystem::LoadAllFilesAsync finishes loading.

On All Files Saved

FConfigForgeSubsystemDelegate OnAllFilesSaved;

Called when UConfigForgeSubsystem::SaveAllFiles and ConfigForgeSubsystem::SaveAllFilesAsync finishes saving.

On File Loaded

FConfigForgeSubsystemFileDelegate OnFileLoaded;

Called when any function has saved runtime file to disk.

On File Saved

FConfigForgeSubsystemFileDelegate OnFileSaved;

Called when any function has loaded runtime file from disk.

On Value Changed (UConfigValueObjectRuntime)

FConfigValueChangedDelegate UConfigValueObjectRuntime::OnValueChanged;

Called when SetDynamicValue changes the value

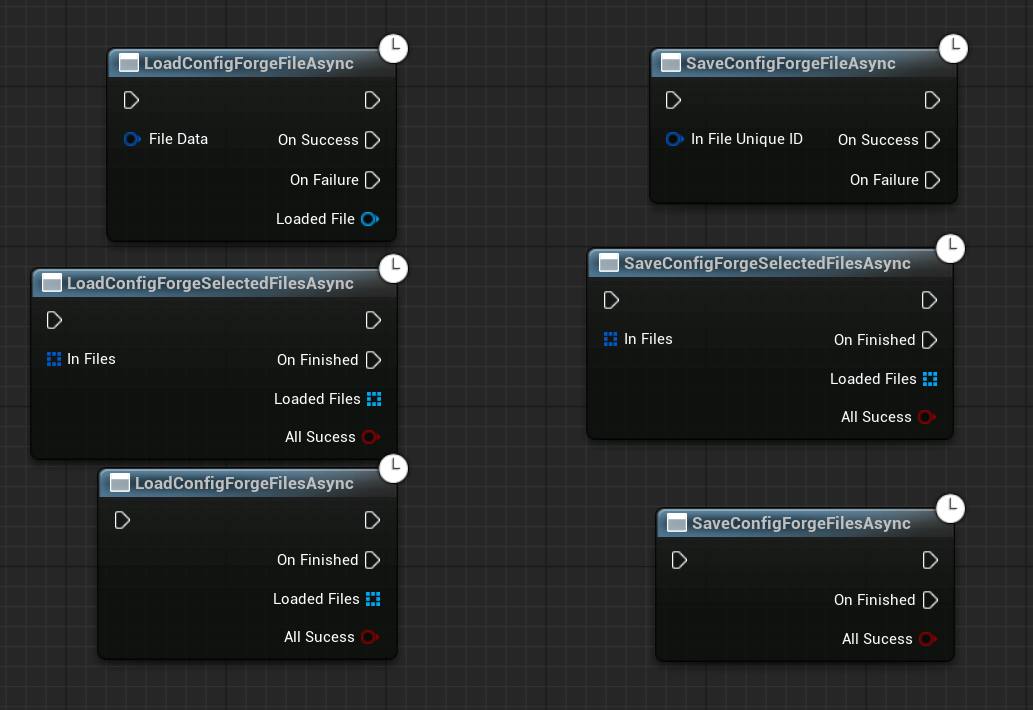

Blueprint Async (K2) Nodes

async-node

All async function are exposed to blueprints via K2 Nodes

Blueprint Workflow Example

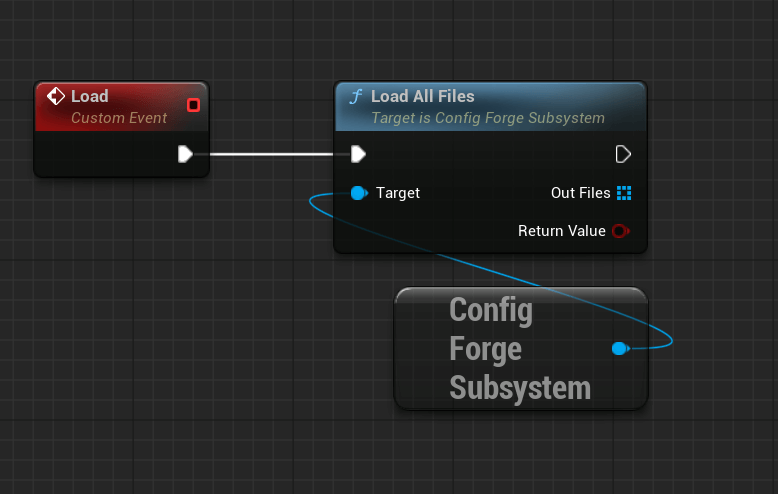

Load

bp-load

Tip

You can load only the files you need based on the meta data object. For example, download only server configurations on the dedicated server.

Modify

bp-load

Tip

You can store in variable the field object reference (pointer) and then change it in the widget. It will remain valid until you reload the file.

Save

bp-load

Tip

You can only save the files you have changed. It is not necessary to load the disc and save all the files if you have a lot of them.

Misc

Info

You can create a naming system so that you don't have to name files manually and can easily change their names during development.
